Dell Axim Bargraph

-

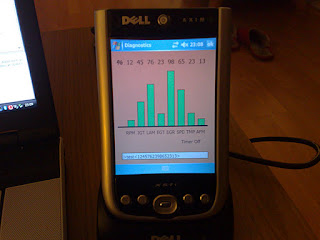

I had a bit of time today to experiment with Embedded Visual Basic and reasonably quickly I got this bar chart display up-and-running. The test data was coming in as a sequence of characters via a Bluetooth serial port. This is a big start of getting something working that can communicate with the Bluetooth enabled data-logging unit I've been tinkering with for months.
