TV output from Arduino

-

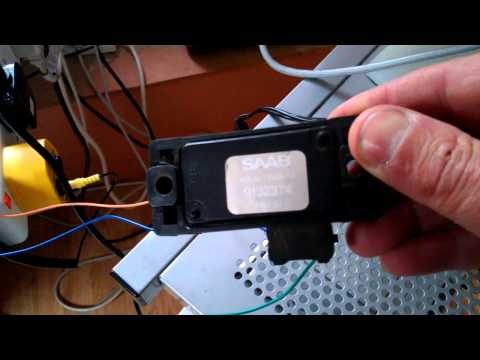

Little video showing a 7-inch LCD monitor connected to an Arduino running the TV-Out library.  For this test I connected a Manifold Air Pressure (MAP) sensor directly to the Arduino using analgue pin 0 (AN0) to create a bonkers boost graph.  Sucking and blowing on the pipe makes the bar graph change.
